Blade Humbucker Pickup Bobbins PP Material
Model No.:

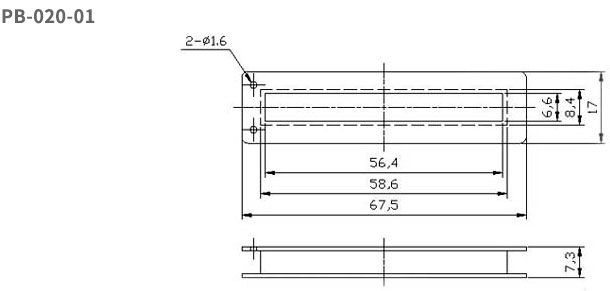

PB-020-01,
56.4x6.6 mm slot size,
67.5x17x7.3 mm overall measurement

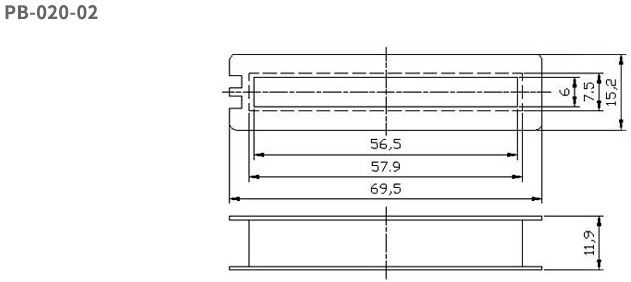

PB-020-02,
56.5x6 mm slot size,
69.5x15.2x11.9 mm overall measurement

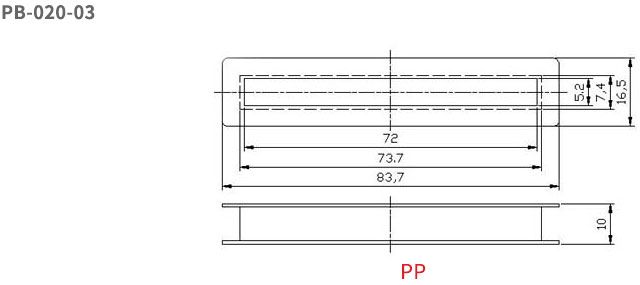

PB-020-03,
72x5.2 mm slot size,
83.7x16.5x10 mm overall measurement
Polypropylene (PP) material

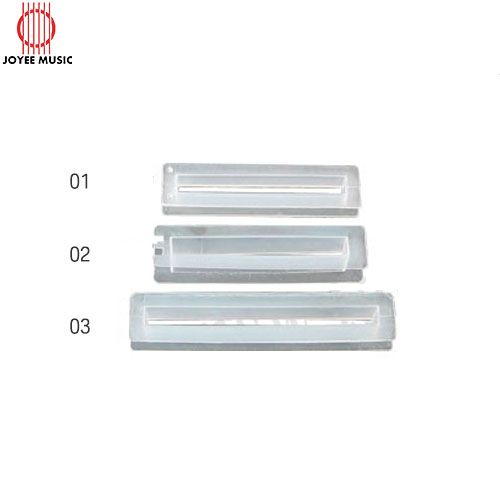

Blade Humbucker Pickup Bobbins
Material: Polypropylene (PP)
Slot Size: 56.4x6.6 mm (01)
56.5x6 mm (02)
72x5.2 mm (03)
Overall Measurement:
67.5mm L x 17mm W x 7.3mm H (01)
69.5mm L x 15.2mm W x 11.9mm H (02)
83.7mm L x 16.5mm W x 10mm H (03)
Detailed Dimensions of the Blade Humbucker Pickup Bobbins
