LP Pickup Open H Type
With 6 slug 6 screw pole pieces
Model No.:
JPU-VLH
Ceramic bar magnet
Chrome or Gold metal cover
JPU-VLHA
Alnico v bar magnet
Chrome or Gold metal cover
Product Description:
VLH: ceramic bar magnet.
#3120(CR/GD) VLH-N(neck) 7.2K 3.8H
#3121(CR/GD) VLH-B(bridge) 16K 9.6H
VLHA: alnico v bar magnet
#3130(CR/GD) VLHA-N(neck) 7.2K 4.2H
#3131(CR/GD) VLHA-B(bridge) 8.2K 5H

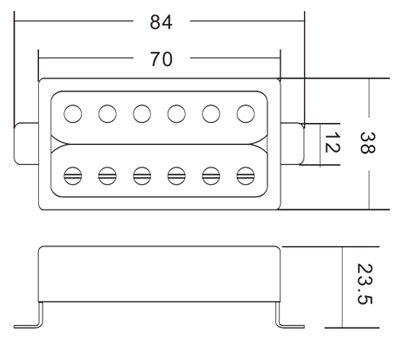

Dimension Drawing of the Les Paul (LP) Pickup:
